Blow-Molded Plastic Pallets

Blow-molded plastic pallets are compatible with both forklift trucks and manual hydraulic pallet jacks, enabling efficient material handling, turnover, and stacking operations. With universal four-way fork access, these pallets can be used even in environments where mechanical forklifts are not available.

We operate more than 30 injection molding machines and 25 blow molding machines, with years of experience in manufacturing blow-molded pallets. From raw-material selection to blow molding, cooling and demolding, quality inspection, and optional logo printing, we provide a complete production workflow. Over 30 size specifications are available, with options for custom dimensions and colors.

Key Features
  • Manufactured from high-molecular-weight high-density polyethylene (HMW-HDPE) using one-time extrusion blow molding.
  • Modern, clean structural design with recessed surface grooves for excellent anti-slip performance and no sharp edges or flashing.
  • Load Capacity: Static load: 4-6 tons; Dynamic load: 1-2 tons; Racking load: 1-1.5 tons
Available Products
Nine-Foot Plastic Pallet
    1. Nine-Foot Plastic Pallet
      • Dimensions: 1400×1100×150mm
      • Material: HDPE/HDPP
      • Color: Customizable
      • Dynamic Load: 1 ton
      • Static Load: 3 tons
      • Loading Quantity: 20-ft Container: 260pcs
      • 40-ft Container: 600pcs
      • 40-ft High Cube: 750pcs
      Inquiry

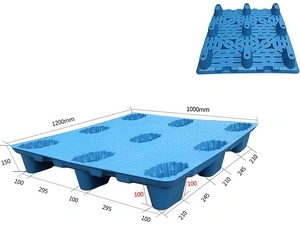

    1. Nine-Foot Plastic Pallet
      • Dimensions: 1200×1000×140mm
      • Material: HDPE/HDPP
      • Color: Customizable
      • Dynamic Load: 1 ton
      • Static Load: 4 tons
      • Loading Quantity: 20-ft Container: 460pcs
      • 40-ft Container: 950pcs
      • 40-ft High Cube: 1100pcs
      Inquiry
    1. Nine-Foot Plastic Pallet
      • Dimensions: 1400×1100×150mm
      • Material: HDPE/HDPP
      • Color: Customizable
      • Dynamic Load: 1 ton
      • Static Load: 3 tons
      • Loading Quantity: 20-ft Container: 260pcs
      • 40-ft Container: 600pcs
      • 40-ft High Cube: 750pcs
      Inquiry
Model Options
Model Dimensions (mm) Weight (kg) Dynamic Load / Static Load (kg)
1008 1000*800*150 8 800/2000
1208 1200*800*150 9 800/2000
1010 1000*1000*150 8 800/2000
1111 1100*1100*150 7.5/8.5/10 800/2000
1210 1200*1000*150 7.5/8.5/10/12/13 800/2000
1211 1200*1100*150 11 1000/4000
1212 1200*1200*150 13 1000/4000
1311 1300*1100*150 11 1000/4000
1410 1400*1000*150 14 1000/4000
1411 1400*1100*150 15 1000/4000
1412 1400*1200*150 14/16 1000/4000
2016 2000*1600*150 24 1000/4000
1690 1690*1010*150 14 1000/4000
Double-Sided Plastic Pallet

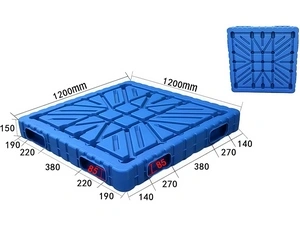

    1. Double-Sided Plastic Pallet
      • Dimensions: 1200×1200×150mm
      • Material: HDPE/HDPP
      • Color: Customizable
      • Dynamic Load: 2 ton
      • Static Load: 6 tons
      • Loading Quantity: 20-ft Container: 110pcs
      • 40-ft Container: 250pcs
      • 40-ft High Cube: 300pcs
      Inquiry

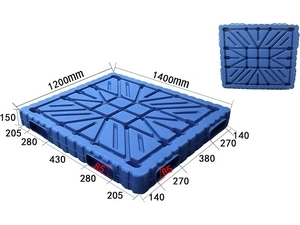

    1. Double-Sided Plastic Pallet
      • Dimensions: 1400×1200×150mm
      • Material: HDPE/HDPP
      • Color: Customizable
      • Dynamic Load: 2 ton
      • Static Load: 6 tons
      • Loading Quantity: 20-ft Container: 100pcs
      • 40-ft Container: 210pcs
      • 40-ft High Cube: 260pcs
      Inquiry

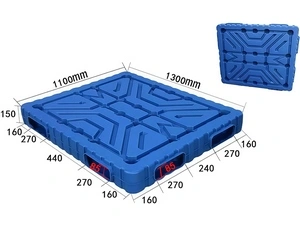

    1. Double-Sided Plastic Pallet
      • Dimensions: 1300×1100×150
      • Material: HDPE/HDPP
      • Color: Customizable
      • Dynamic Load: 2 ton
      • Static Load: 6 tons
      • Loading Quantity: 20-ft Container: 110pcs
      • 40-ft Container: 240pcs
      • 40-ft High Cube: 310pcs
      Inquiry
Model Options
Model Dimensions (mm) Weight (kg) Dynamic Load / Static Load (kg)
1111 1100*1100*150 18/20 2000/6000
1210 1200*1000*150 18/20 2000/6000
1212 1200*1200*150 22 2000/6000
1311 1300*1100*150 22 2000/6000
1412 1400*1200*150 26 2000/6000
1414 1400*1400*150 36 2000/6000
1512 1500*1200*150 32 2000/6000
1513 1500*1300*150 36 2000/6000
1515 1500*1500*150 45 2000/6000
1614 1600*1400*150 40 2000/6000
1616 1600*1600*150 48 2000/6000
1715 1700*1500*150 50 2000/6000
1812 1800*1200*150 50 2000/6000
1816 1800*1600*150 52 2000/6000
1915 1900*1500*150 60 2000/6000
2016 2000*1600*150 62 2000/6000
