Plastic Pallet & Layer Pad Washing Equipment

    1. Plastic Pallet Washing Machine

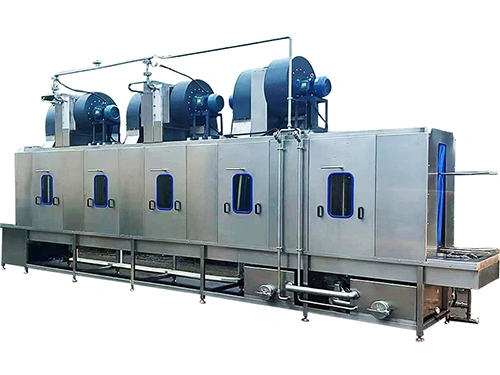

      Plastic Pallet Washing Machine

      The plastic pallet washing machine features stainless-steel hot-water washing pumps and is designed to replace traditional manual cleaning. It meets the high-volume pallet sanitation requirements of food processing facilities, ensuring reliable, consistent, and hygienic cleaning performance for reusable plastic pallets.

      View More
    1. Plastic Layer Pad Washing Machine

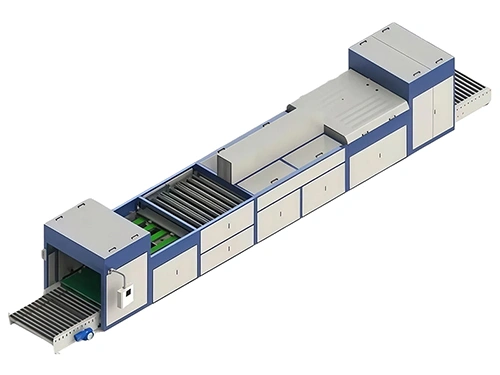

      Plastic Layer Pad Washing Machine

      The plastic layer pad washing machine is equipped with stainless-steel hot-water washing pumps and is designed to replace traditional manual cleaning. It supports the high-throughput sanitation requirements of food processing facilities, ensuring efficient, consistent, and hygienic cleaning of reusable plastic layer pads.

      View More
Related Can Handling Machines
View All Machines
  • Can Body Blank Transfer System
    Can Body Blank Transfer System
  • Can Body Induction Curing Oven
    Can Body Induction Curing Oven
  • Can Body Diverter Conveyor (Diverging Conveyor)
    Can Body Diverter Conveyor
    (Diverging Conveyor)
  • Can Body U-Turn Conveyor
    Can Body U-Turn Conveyor
  • Can Body Upender (Can Up-Righter)
    Can Body Upender
    (Can Up-Righter)
  • Can Body Air Cooling Conveyor
    Can Body Air Cooling Conveyor
Individual Machines
  • Can Body Blank Transfer System
  • Can Body Induction Curing Oven
  • Can Body Diverter Conveyor (Diverging Conveyor)
  • Can Body U-Turn Conveyor
  • Can Body Upender (Can Up-Righter)
  • Can Body Air Cooling Conveyor
  • Can Lid Feeder (Can End Feeder)
  • Ionized Air Can Rinser
  • Can Body UV Sterilizer
  • Can Turning Machine
  • Can Body Magnetic Elevator
    (Z Type/S Type/C Type)
  • Can Palletizer
  • Can Depalletizer
  • Automatic Pallet Stacker & Pallet Dispenser
  • Conveying Equipment
  • Automatic Can Rope Strapping Machine
  • Automatic Vertical Pallet Strapping Machine
  • Automatic Labeling Machine
  • Stretch & Pallet Wrapping Equipment
  • Automatic Pallet Stacking Machine
    (Double Load Stacker)
  • Pallet Elevator
    (Vertical Reciprocating Conveyor)
  • AGV & RGV Autonomous Material Handling System
  • Plastic Pallet & Layer Pad Washing Equipment
    1. Plastic Pallet Washing Machine
    2. Plastic Layer Pad Washing Machine
    1. Beverage Can & Food Can Line
      Beverage Can & Food Can Line

      Empty beverage cans, food cans and milk powder cans must be palletized, wrapped and strapped safely and efficiently, then transferred from the can making line to the warehouse, and later from the warehouse to the filling line for depalletizing, filling, palletizing again, wrapping and storage.

      Learn More
    1. Chemical Pail & Paint Can Line
      Chemical Pail & Paint Can Line

      This chemical pail production line is designed for high-risk chemical packaging, with a structure and process that support UN-certified performance for pressure and corrosion resistance.

      Learn More
Can the washing system ensure thorough cleaning without blind spots?

Yes. Our washing equipment uses a high-pressure spray system combined with corrosion-resistant stainless-steel pumps. The multi-angle spray layout delivers strong, uniform pressure and full coverage, ensuring that every corner of the pallet or layer pad is thoroughly cleaned with no blind spots or residual contamination.

The equipment uses a high-pressure spray system paired with high-reliability stainless-steel pumps from Nanfang Pump Industry (7.5 kW for fine washing, 5.5 kW for rinsing).

Will the washing process consume too much water?

No. The washing machine uses a circulating water system, which saves a significant amount of water compared with one-time discharge. Water consumption is only 200-800L/h, whereas manual cleaning typically requires more than 2000L/h. With far lower water usage and higher cleaning efficiency, the washing equipment can substantially reduce long-term utility and operating costs.

Can it remove oil stains that are difficult to clean at room temperature?

Yes. The system supports adjustable-temperature hot-water washing.

Combined with high-pressure spray and mechanical brushing, heated washing greatly enhances oil-removal efficiency compared with room-temperature cleaning. The washing temperature can be set based on contamination level to ensure complete removal of stubborn oil or grease.

How can the plastic layer pad washer reduce cleaning costs through process control?

Our plastic layer pad washing machine allows flexible adjustment of the cleaning process to effectively control operating costs. For lightly contaminated pads, users can lower the high-pressure spray intensity, shorten the cleaning cycle, or make full use of the water-recirculation system to reuse water. By optimizing these parameters, the washing equipment can significantly reduce water and energy consumption while still maintaining the required cleaning quality.
