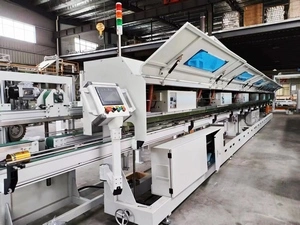

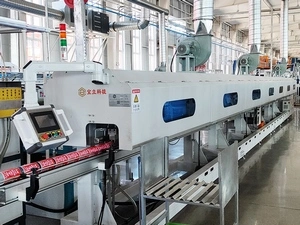

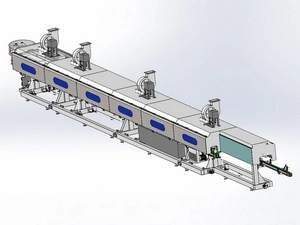

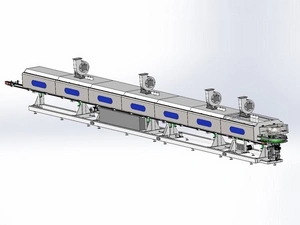

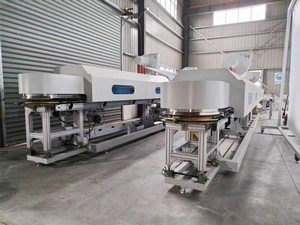

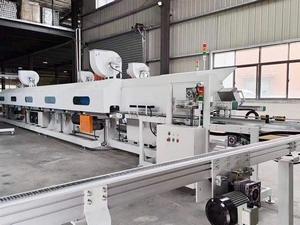

Can Body Induction Curing Oven
Can curing system for drying and curing the water-based coating, powder or adhesive on the surface of tinplate can bodiesIn food can, beverage can, and chemical can production, every can body must pass through a curing oven following printing, gluing, or coating processes. The can body induction curing oven heats and cures water-based coatings, powders, or adhesives, ensuring that decoration, protective layers, and adhesive bonds adhere firmly and uniformly to the tinplate surface.
Specifications
| Equipment dimensions | L 13800 × W 860 × H 2200 mm |
| Application | Tinplate cans |
| Belt conveying speed | 10 to 86 m/min |
| Can size | #200D to #401D (customizable) |
| Number of induction heads | 12 units (customizable) |
| Induction head power | 0.5 to 1.5 kW per head (customizable) |
| Machine weight | 3.3 t |
| Total power | 25 kW |
Details
