Can Body Magnetic Elevator (Z Type/S Type/C Type)

Magnetic belt conveyor for lifting and conveying tinplate cans in Z, S or C-shaped conveying layouts

The can body magnetic elevator works on the attraction force of permanent magnets. A strong magnetic field holds the cans firmly against the moving belt, and the motor-driven belt then lifts and transfers the cans to the required height.

Depending on your line layout, the elevator can be designed in Z, S or C configurations, giving you flexible options to fit existing equipment and available floor space.

Request a Quote
Specifications
Model series BL-ST3500
Structure & materials Side frames: powder coated carbon steel; magnetic body: stainless steel; conveying belt: high-speed, wear-resistant POM modular belt
Suitable products All types of tinplate cans
Applicable can size Diameter 50–200 mm, height 50–200 mm
Production capacity 300–800 cans per minute, frequency inverter control, smooth start and stop
Dimensions Customized according to on-site installation position
Motor power 1.5 kW, 380 V
Details

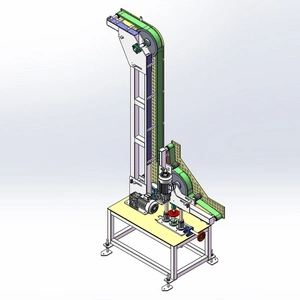

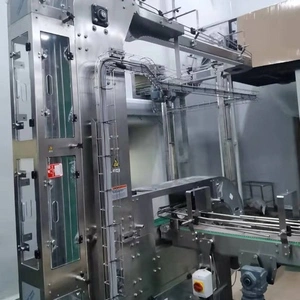

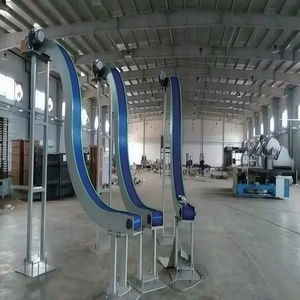

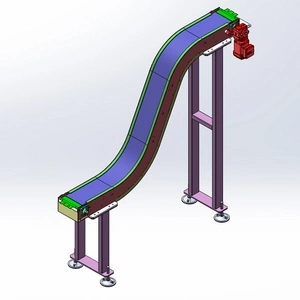

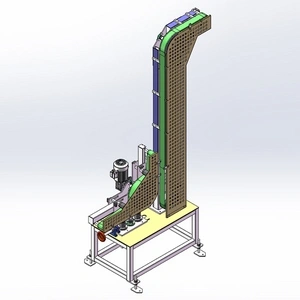

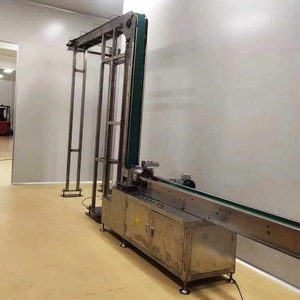

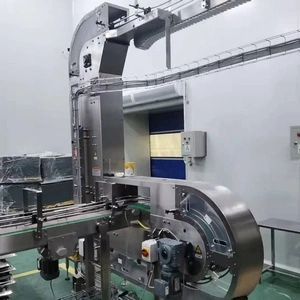

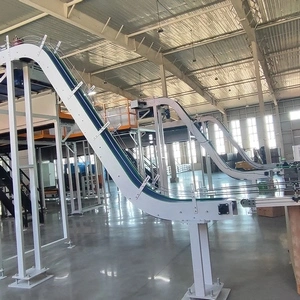

  • Can Body Magnetic Elevator (Z Type/S Type/C Type)
  • Can Body Magnetic Elevator (Z Type/S Type/C Type)
  • Can Body Magnetic Elevator (Z Type/S Type/C Type)
  • Can Body Magnetic Elevator (Z Type/S Type/C Type)
  • Can Body Magnetic Elevator (Z Type/S Type/C Type)
  • Can Body Magnetic Elevator (Z Type/S Type/C Type)
  • Can Body Magnetic Elevator (Z Type/S Type/C Type)
  • Can Body Magnetic Elevator (Z Type/S Type/C Type)
Customer Cases

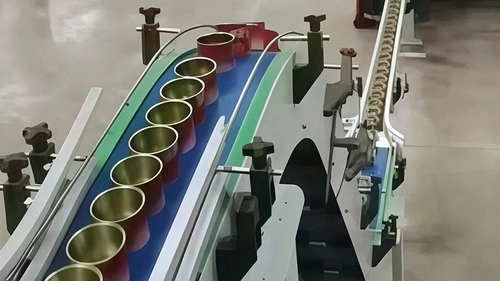

    • Z-Type Magnetic Elevator for Can Body
      Z-Type Magnetic Elevator for Can Body

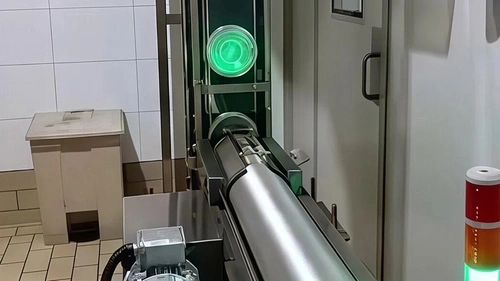

    • S-Type Magnetic Elevator for Can Lid
      S-Type Magnetic Elevator for Can Lid
