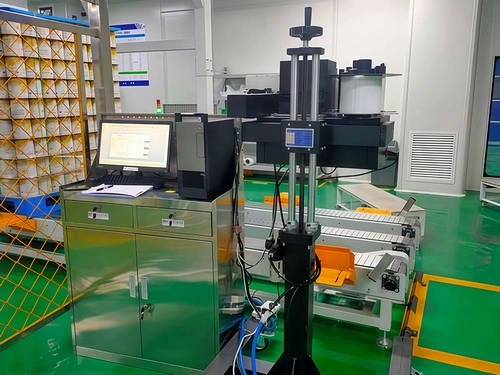

Automatic Labeling Machine
Automatic labeler for applying QC labels, PASS labels, inspection tags and identification stickers on packages or containers
Designed as specialized equipment, the automatic labeling machine uses automation technology to replace manual application of qualification certificates (also referred to as inspection passed labels, QC labels, PASS labels, etc.) on products or packaging. The PLS540 (pressure-application) qualification labeler series can automatically adapt to products of different heights within a defined stroke range and supports both dynamic and static labeling, with intelligent control and precise positioning. An air-blow function on the label surface can be added after labeling.
Specifications
| Printing mode | Thermal, thermal transfer |
| Printer brand | Zebra Technologies |
| Label supply mode | Roll labels or fan-fold labels |
| Label size | Width 20–105 mm, length 15–200 mm (customizable) |
| Roll label diameter | Max. 12 inches (300 mm) (customizable) |
| Liner waste roll diameter | Max. 6 inches (152 mm) (customizable) |
| Core size | 3 inches (76 mm) (customizable) |
| Label dispensing speed | Up to 305 mm/s (hardware-dependent, customizable) |
| Main unit dimensions | L 740.5 × W 574 × H 667.5 mm (excluding bracket) |
| Machine weight | 65 kg |
| Power | 800 W |
