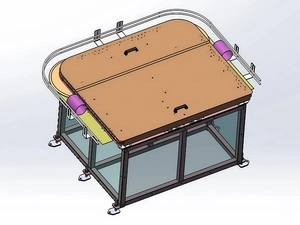

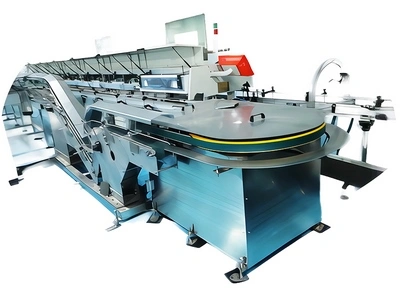

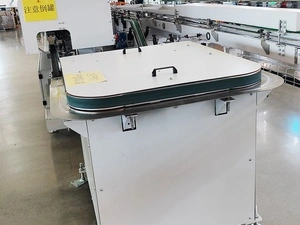

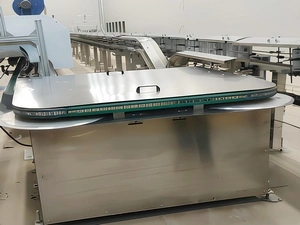

Can Body U-Turn Conveyor

U-shaped magnetic conveyor for smoothly transferring and redirecting tinplate can bodies

The can body U-turn conveyor, also known as a 360 degree magnetic transfer conveyor, is mainly used for conveying can bodies in tinplate can making plants and can also handle other ferrous products. It is designed to redirect cans in a compact footprint while keeping them stable and correctly oriented.

Specifications

Belt width	50 to 150 mm
Belt material	PU belt
Frame material	304 stainless steel or powder coated carbon steel
Motor	0.75 kW × 2, 380 V (Liming, Taiwan)
Applicable can types	Various tinplate easy-open can bodies

Features

No operator is required during normal operation, as cans are transferred automatically from the U-shaped curing oven outlet to the cooling conveyor over a very short distance
Conveyor speed can reach about 500 to 800 cans per minute, supporting high speed three piece can lines
Smooth running and high production efficiency, with speed adjustment through frequency controlled motors
Main frame manufactured from 304 stainless steel or powder coated carbon steel for a clean, simple and robust structure

Details
