Can Body Upender (Can Up-Righter)
Automatic upending machines for turning horizontal tinplate can bodies into upright orientationThe can body upender automatically turns horizontally conveyed tinplate can bodies into an upright position, so they can enter downstream automation steps such as conveying, inspection, palletizing or filling in a stable and controlled way.

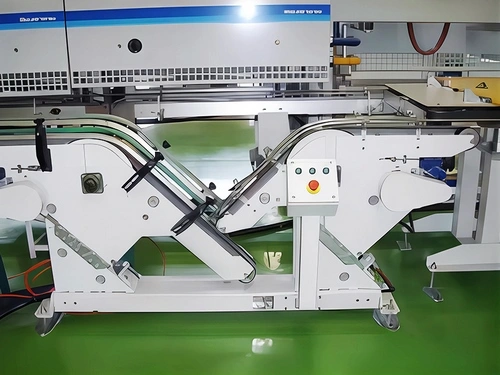

The V-type can upender is widely used on tinplate easy-open can production lines, providing a stable and efficient way to turn can bodies from a horizontal position to an upright orientation for downstream processing.
| Belt width | 50 to 80 mm |
| Belt material | PU belt |
| Frame | 304 stainless steel, powder coated carbon steel or aluminium |
| Motor | 1.5 kW × 2 (Liming, Taiwan) |
| Applicable can types | Various tinplate easy-open can bodies |
| Upending connection options | Multiple layouts, including straight 90-degree discharge and 90-degree corner transfer |

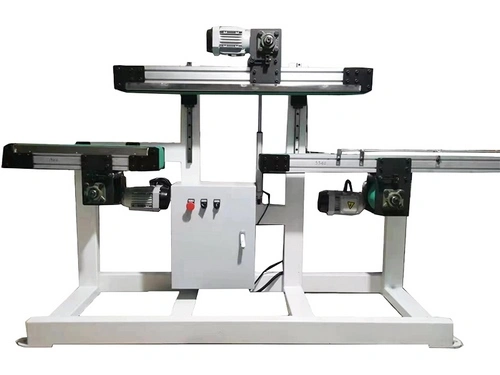

Compared with the V-type can upender, the magnetic can body upender is designed for higher-speed production lines where fast, stable can upending is required.
- Belt width: 50 to 80 mm
- Belt material: PU belt
- Frame: 304 stainless steel, powder coated carbon steel or aluminium
- Motor: 1.5 kW × 2 (Liming, Taiwan)

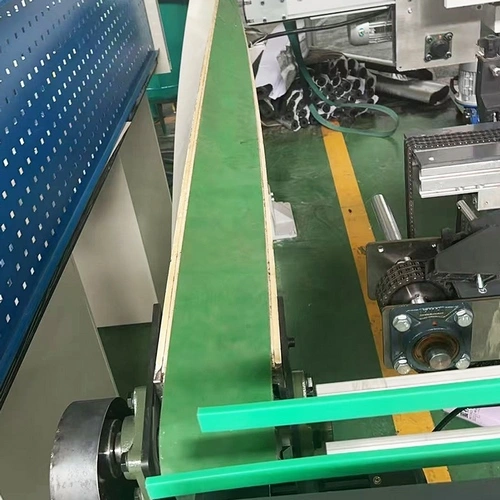

This newly designed rotary can body upender has one key advantage: it can eliminate the need for a separate U-turn conveyor in the next stage, helping you simplify the production line layout and reduce equipment and investment costs.
- Belt width: 50 to 80 mm
- Belt material: PU belt
- Frame: 304 stainless steel, powder coated carbon steel or aluminium
- Motor: 1.5 kW × 2 (Liming, Taiwan)
- Applicable can types: All tinplate cans
All other parameters can be tailored to match your specific line layout and production requirements.
