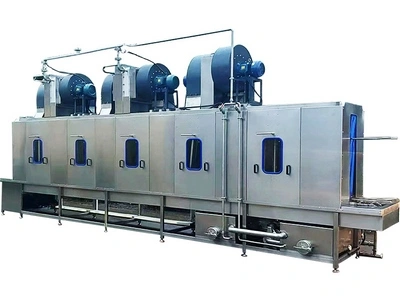

Plastic Pallet Washing Machine
Pallet washer for hygienic cleaning of plastic pallets in food processing plantsThe plastic pallet washing machine features stainless-steel hot-water washing pumps and is designed to replace traditional manual cleaning. It meets the high-volume pallet sanitation requirements of food processing facilities, ensuring reliable, consistent, and hygienic cleaning performance for reusable plastic pallets.
Specifications
| Length/Width/Height | L16000 (maximum; length can be customized/shortened)×W1200×H1000 mm |
| Water Tank Material | Material: SUS304 stainless steel Thickness: 2mm |
| Power Supply | 380V AC, 50Hz |
| Installed Power | Typically 5-30kW (depending on equipment configuration) |
| Steam Pressure | 0.44MPa |
| Steam Consumption | 0.3T/h |
| Throughput | Typically 5-20 pieces/min (adjustable based on cleaning process and required cleanliness) |
| Speed Control | Frequency inverter |
| Cleaning Height | ≤1300mm |
| Cleaning Dimensions | Customizable; common pallet sizes include 1200×1000mm, 1300×1300mm, 1400×1100mm |
| Water Temperature | 30-70°C to enhance cleaning performance |
| Water Supply Pressure | 0.4MPa |
| Water Consumption | Typically 200-800 L/h depending on process and water circulation efficiency |
System Structure
The plastic pallet washing machine is composed of several key systems, including the main body, spray system, filtration system, temperature-control system, emergency stop system, heating system, conveying system, and electrical control system.
-

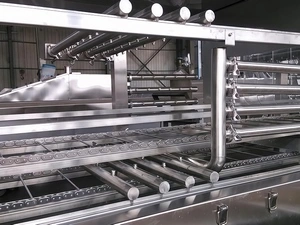

Spray System -

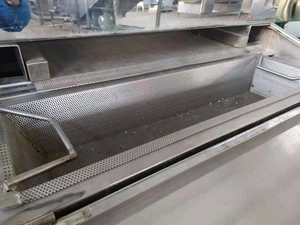

Filtration System -

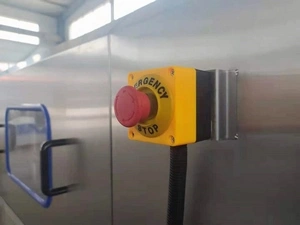

Emergency Stop System -

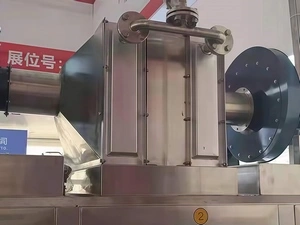

Heating System -

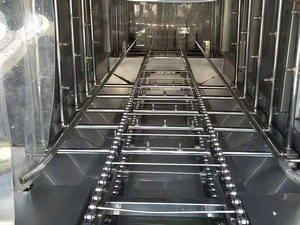

Conveying System -

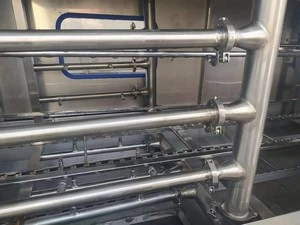

Spray Pipes and Nozzle Assembly
